Meeting Room LED Display Wall P1.53 SMD RGB Mini LED Display 320mm*160mm Shenzhen Factory

Product Categories

Shenzhen LCS Display Technology Company., Ltd

Contact Now

Meeting Room LED Display Wall P1.53 SMD RGB Mini LED Display 320mm*160mm Shenzhen Factory

Name: Meeting Room LED Display Wall P153 SMD RGB Mini LED Display 320mm160mm Shenzhen Factory
Brand: BOE
Price: 100.00 USD

China Meeting Room LED Display Wall P1.53 SMD RGB Mini LED Display 320mm*160mm Shenzhen Factory wholesale

Brand Name : BOE

Model Number : P1.53 LED Display

MOQ : 100pcs

Price : 100.00 usd

Payment Terms : T/T

Supply Ability : 3000pcs

Delivery Time : 5days

Packaging Details : 580*370*400mm

Certification : CE FCC

Place of Origin : China

Item : P1.53 SMD Indoor Display

Cabinet Size : 320mm*160mm

Resolution : 208*104

Driving Method : 1/52 Scan

Brightness : 650mcd

LED Lamp : SMD 1515

Refresh Rate : 3840hz

Dot Density : 422500 LED/Sqm

Contact Now

Meeting Room LED Display Wall P1.53 SMD RGB Mini LED Display 320mm*160mm Shenzhen Factory

SPECIFICATION

Model.PN NO: P1.53 52s SMD INDOOR MODULE-320*160MM

REV NO:KP14015M-N00-S550

Description:

■ 320*160mm SMD Indoor module

■ Lamp:HUAGUANG-1212

■ Driver IC:FM6353

Shenzhen LCS Electronic Co.,Ltd
Technology department	Quality department	Marketing department

Meeting Room LED Display Wall P1.53 SMD RGB Mini LED Display 320mm*160mm Shenzhen Factory

P1.53 SMD indoor

Description:

Size: 320mm*160mm

Resolution: 208dots*104dots

Driving Method: 1/52 Scan

Module brightness: 450nit

Display Fresh requency: ≥3840hz

Working environment: Indoor

Parameter:

Pixel pitch	1.53 mm
LED Lamp type	3in1RGB Huaguang 1212
Module size	320mmx160mmX15mm
Module resolution	208*160
Pixels Density	422500 Dots/㎡
Brightness	450nit
Scan type	1/52 Scan
Frame Rata	60Hz
Fresh requency	≥3840hz
Voltage input	5V
Module power input	24W
Led module weight	0.52kg±0.01kg
Led display weight (*Cabinet size:640480mm**)	6.0kg±0.05 kg
Working Temp	-20℃ to +60℃
Horizontal View Angel	>140degree
Hub connecting	HUB75
Cabinet size	640mm*480mm

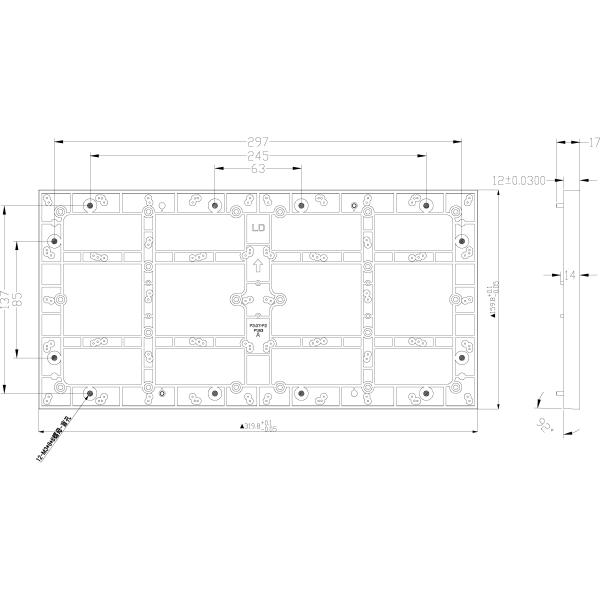

Dimensions:

Meeting Room LED Display Wall P1.53 SMD RGB Mini LED Display 320mm*160mm Shenzhen Factory

Package:

● Box size:580*370*400mm

● Package quantity:40PCS

● Weight:19.6Kg

Meeting Room LED Display Wall P1.53 SMD RGB Mini LED Display 320mm*160mm Shenzhen Factory

Web:

WWW.LEDLCS.COM

www.ledvideo-screen.com

Product Tags:

P1.53 SMD Mini LED Display

HUB75 Connecting Mini LED Display

SMD RGB Mini LED Screen
